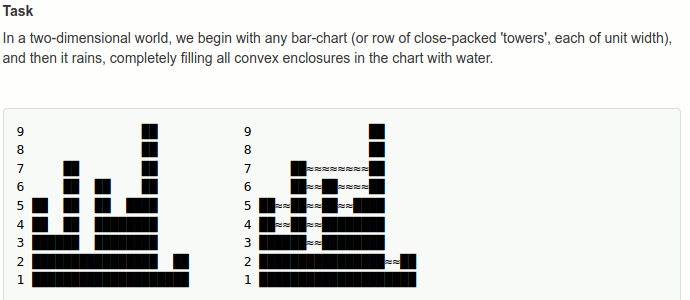

Water Towers ( Rosetta Code)

    data "1,5,3,7,2", "5,3,7,2,6,4,5,9,1,2", "2,6,3,5,2,8,1,4,2,2,5,3,5,7,4,1", "5,5,5,5", "5,6,7,8", "8,7,7,6", "6,7,10,7,6"

    nomainwin

    dim array$( 20, 20)

    WindowWidth  = 400
    WindowHeight = 500

    open "Water Towers" for graphics_nsb as #wg

    #wg "trapclose quit"

    #wg "down ; fill darkblue"
    #wg "font Ubuntu_Mono 15 bold"

    for k =1 to 7
        rain =0
        read wt$

        towersIn    =1
        for i =1 to len( wt$)
            if mid$( wt$, i, 1) ="," then towersIn =towersIn +1
        next i

        #wg "cls"

        gosub [clearArray]

        for i =1 to towersIn
            v =val( word$( wt$, i, ","))
            for j =0 to 20
                if j <v then array$( i, j) ="red" else array$( i, j) ="white" '  red if tower, white if empty
                #wg "backcolor "; array$( i, j)
                #wg "    color "; array$( i, j)
                #wg "up ; goto "; 20 +i *20; " "; 450 -20 *j; " ; down ; boxfilled "; 40 +i *20; " "; 430 -20 *j
            next j
        next i

       call delay 1000

       #wg "getbmp scr 0 0 400 500"
       bmpsave "scr", "rain" +str$( k) +"a.bmp"

        for i =2 to towersIn -1
            for v =0 to 19
                me$     =array$( i, v)
                left$   =array$( i -1, v)

                right$   =""
                for w =i +1 to towersIn
                    if array$( w, v) ="red" then right$ ="red"
                next w

                if ( me$ ="white" and left$ ="red" and right$ ="red") or ( me$ ="white" and left$ ="cyan" and right$ ="red") then
                    array$( i, v) ="cyan": rain =rain +1
                end if

                #wg "backcolor "; array$( i, v)
                #wg "    color "; array$( i, v)
                #wg "up ; goto "; 20 +i *20; " "; 450 -20 *v; " ; down ; boxfilled "; 40 +i *20; " "; 430 -20 *v

            next v
        next i

        #wg "up ; goto 100 80 ; down ; color black"
        #wg "\" +"Run "; k; "  Rain ="; rain

       #wg "getbmp scr 0 0 400 500"
       bmpsave "scr", "rain" +str$( k) +"b.bmp"

       call delay 1000

    next k

    wait

    end

    sub quit h$
        close #wg
        end
    end sub

[clearArray]
    for i =0 to 10
        for j =0 to 20
            array$( i, j) =""   '   state not known
        next j
    next i

    return

sub delay t
    timer t, [o]
    wait
  [o]
    timer 0
end sub
